Using doper

The Doper module includes the get_dopants function. This function requires an input, which is a tuple of strings representing the ionic species of the material.

By default, the top five p-type and n-type candidates are reported. Use the num_dopants input to modify the number of outputs.

Output Format

The output is a dictionary with keys:

• “n-type cation substitutions”

• “p-type cation substitutions”

• “n-type anion substitutions”

• “p-type anion substitutions”

Each key contains a list of possible dopants, ordered by probability (Highest → Lowest). Each possible dopant is represented as a list with 6 components: ['substituted dopant', 'original species', 'probability', 'similarity', 'selectivity', 'combined score']

from smact.dopant_prediction.doper import Doper

# Define the material using its ionic species.
# Here, we are creating a material object with titanium in the 4+ oxidation state (Ti4+) and oxygen in the 2- oxidation state (O2-).
material = Doper(("Ti4+", "O2-"))

# Use the `get_dopants` function to predict potential dopants.
# By default, it returns the top 5 p-type and n-type dopants, but this can be adjusted with the `num_dopants` parameter.
# The output will be a dictionary with possible n-type and p-type cation and anion dopants.
dopants = material.get_dopants(num_dopants=5)

# Print only the top sorted dopants for each category.
# Each entry: [dopant_species, host_species, probability, similarity, selectivity, combined_score].
for category, results in dopants.items():
    print(f"\n{category}:")
    for entry in results["sorted"]:
        dopant, host, prob, sim, sel, combined = entry
        print(f"  [{dopant!r}, {host!r}, {prob:.4g}, {sim:.4g}, {sel:.4g}, {combined:.4g}]")

n-type cation substitutions:
  ['Ta5+', 'Ti4+', 8.79e-05, 1.85, 1, 1.637]
  ['Nb5+', 'Ti4+', 7.83e-05, 1.734, 1, 1.551]
  ['Sb5+', 'Ti4+', 6.259e-05, 1.51, 1, 1.383]
  ['Ru5+', 'Ti4+', 4.904e-05, 1.266, 1, 1.2]
  ['Re5+', 'Ti4+', 4.546e-05, 1.191, 1, 1.143]

p-type cation substitutions:
  ['Na1+', 'Ti4+', 0.0001006, 1.985, 1, 1.739]
  ['Zn2+', 'Ti4+', 8.564e-05, 1.824, 1, 1.618]
  ['Mn2+', 'Ti4+', 8.564e-05, 1.824, 1, 1.618]
  ['Mg2+', 'Ti4+', 6.777e-05, 1.59, 1, 1.442]
  ['Fe3+', 'Ti4+', 6.259e-05, 1.51, 1, 1.383]

n-type anion substitutions:
  ['F1-', 'O2-', 0.01508, 6.995, 1, 5.496]
  ['Cl1-', 'O2-', 0.004737, 5.837, 1, 4.628]
  ['Br1-', 'O2-', 0.001083, 4.361, 1, 3.521]
  ['I1-', 'O2-', 0.0007848, 4.039, 1, 3.279]

p-type anion substitutions:
  ['N3-', 'O2-', 0.001466, 4.664, 1, 3.748]

The results can be presented in a table format using the to_table attribute.

table = material.to_table
lines = table.split('\n')
print('\n'.join(lines[:30]))
if len(lines) > 30:
    print(f'[... {len(lines) - 30} more lines ...]')

n-type cation substitutions
sorted
+--------+----------+--------+---------------+--------------+---------------+------------+
|   Rank | Dopant   | Host   |   Probability |   Similarity |   Selectivity |   Combined |
+========+==========+========+===============+==============+===============+============+
|      1 | Ta5+     | Ti4+   |   8.79037e-05 |      1.84999 |             1 |    1.63749 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      2 | Nb5+     | Ti4+   |   7.83004e-05 |      1.7343  |             1 |    1.55072 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      3 | Sb5+     | Ti4+   |   6.25917e-05 |      1.51038 |             1 |    1.38279 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      4 | Ru5+     | Ti4+   |   4.90413e-05 |      1.26641 |             1 |    1.19981 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      5 | Re5+     | Ti4+   |   4.54618e-05 |      1.19062 |             1 |    1.14297 |
+--------+----------+--------+---------------+--------------+---------------+------------+

5+
+--------+----------+--------+---------------+--------------+---------------+------------+
|   Rank | Dopant   | Host   |   Probability |   Similarity |   Selectivity |   Combined |
+========+==========+========+===============+==============+===============+============+
|      1 | Ta5+     | Ti4+   |   8.79037e-05 |      1.84999 |             1 |    1.63749 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      2 | Nb5+     | Ti4+   |   7.83004e-05 |      1.7343  |             1 |    1.55072 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      3 | Sb5+     | Ti4+   |   6.25917e-05 |      1.51038 |             1 |    1.38279 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      4 | Ru5+     | Ti4+   |   4.90413e-05 |      1.26641 |             1 |    1.19981 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      5 | Re5+     | Ti4+   |   4.54618e-05 |      1.19062 |             1 |    1.14297 |
+--------+----------+--------+---------------+--------------+---------------+------------+
[... 119 more lines ...]

Ternary and multicomponent systems can also be dealt with.

quaternary = Doper(("Cu1+", "Zn2+", "Ge4+", "S2-"))
dopants = quaternary.get_dopants()
for category, results in dopants.items():
    print(f"\n{category}:")
    for entry in results["sorted"]:
        dopant, host, prob, sim, sel, combined = entry
        print(f"  [{dopant!r}, {host!r}, {prob:.4g}, {sim:.4g}, {sel:.4g}, {combined:.4g}]")

n-type cation substitutions:
  ['Si4+', 'Zn2+', 0.0002388, 2.849, 0.21, 2.19]
  ['Hg2+', 'Cu1+', 0.0002052, 2.698, 0.55, 2.161]
  ['Zn2+', 'Cu1+', 0.0002145, 2.742, 0.14, 2.092]
  ['Ge4+', 'Zn2+', 0.0001752, 2.54, 0.1, 1.93]
  ['P5+', 'Ge4+', 0.0001357, 2.285, 0.69, 1.886]

p-type cation substitutions:
  ['Na1+', 'Zn2+', 0.0002574, 2.925, 0.79, 2.391]
  ['Cu1+', 'Zn2+', 0.0002145, 2.742, 0.06, 2.072]
  ['Zn2+', 'Ge4+', 0.0001752, 2.54, 0.11, 1.932]
  ['K1+', 'Zn2+', 0.0001202, 2.163, 0.86, 1.837]
  ['Cd2+', 'Ge4+', 0.0001186, 2.15, 0.25, 1.675]

n-type anion substitutions:
  ['Cl1-', 'S2-', 0.0007087, 3.937, 1, 3.203]
  ['Br1-', 'S2-', 0.0003789, 3.311, 1, 2.733]
  ['I1-', 'S2-', 0.0003595, 3.259, 1, 2.694]
  ['F1-', 'S2-', 0.0002122, 2.731, 1, 2.298]

p-type anion substitutions:
  ['N3-', 'S2-', 0.0007863, 4.041, 1, 3.281]

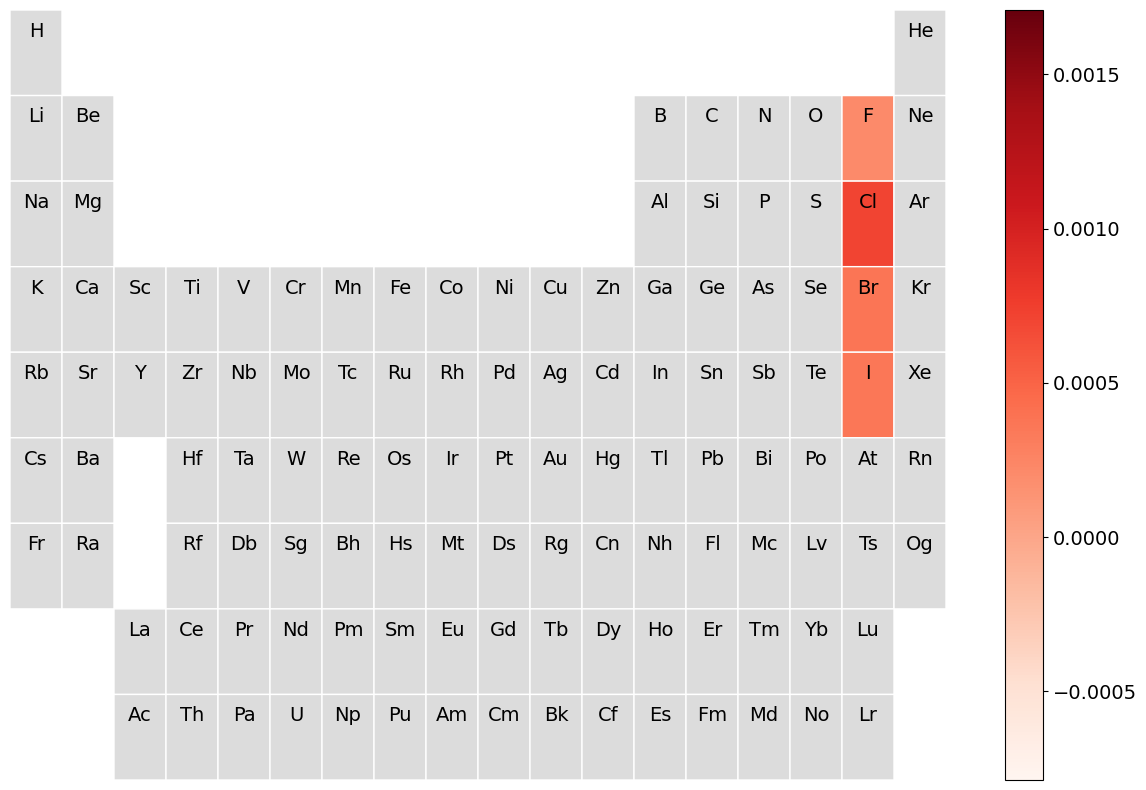

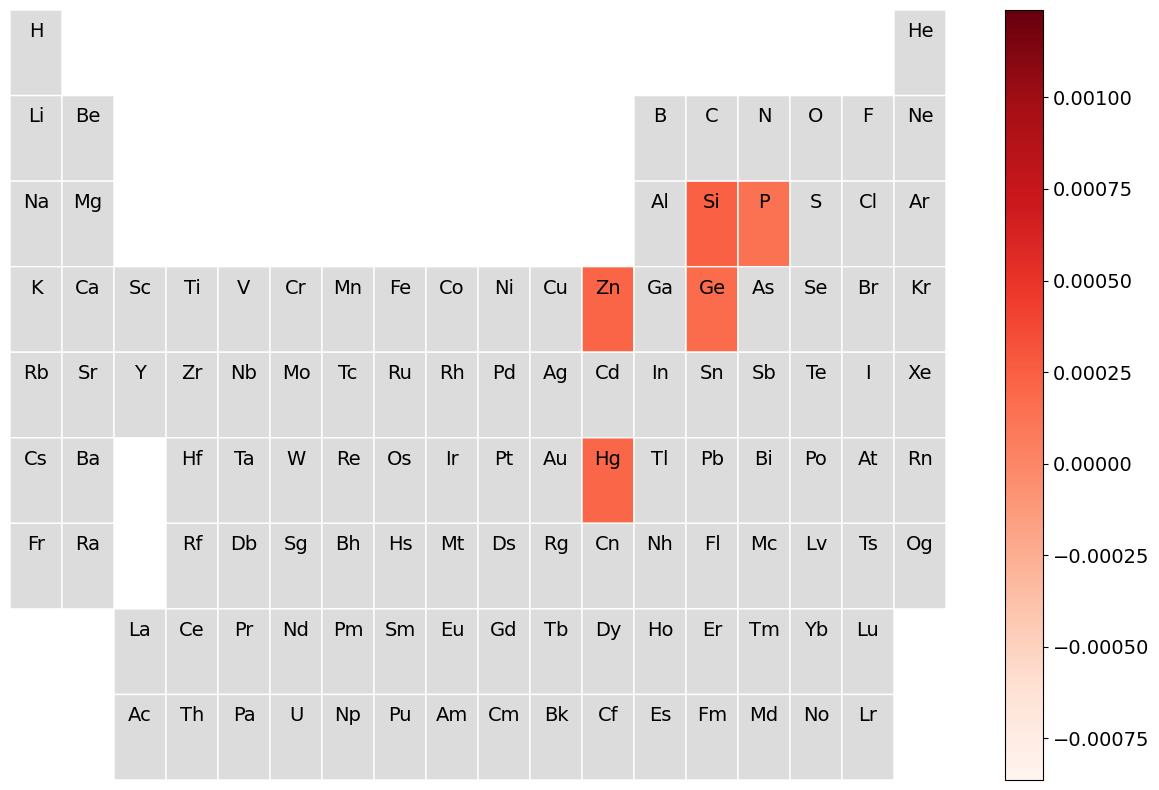

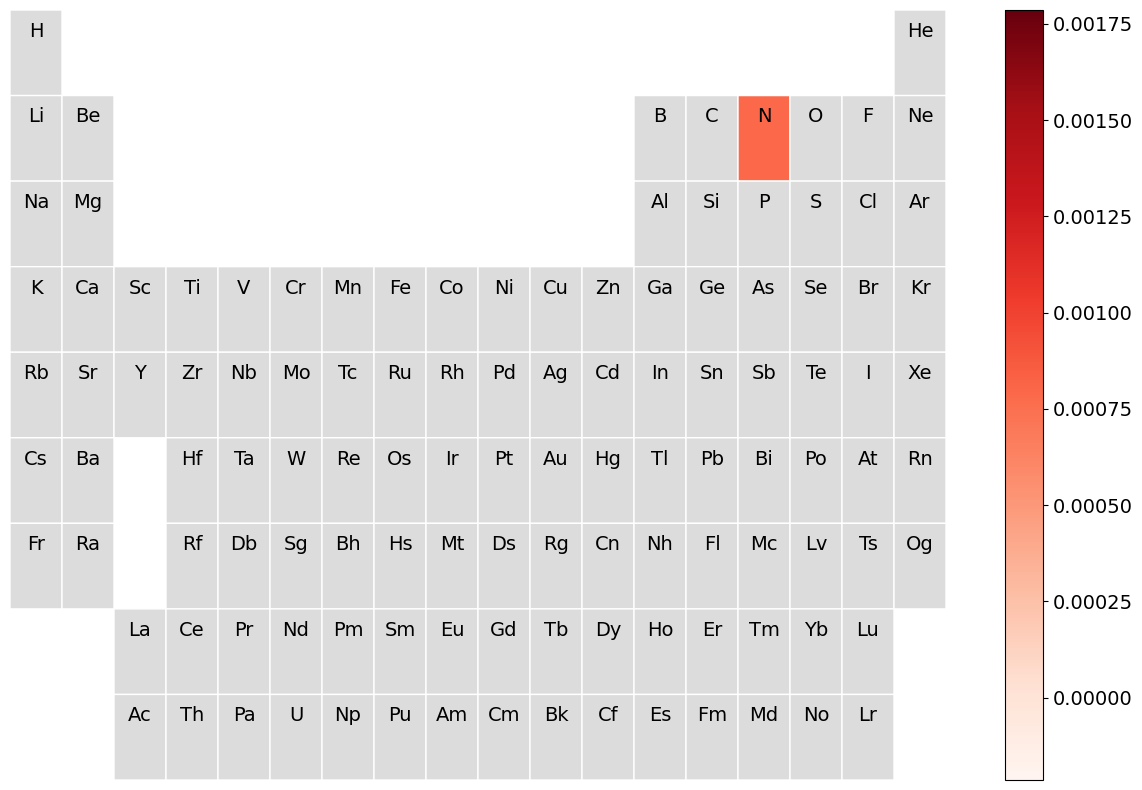

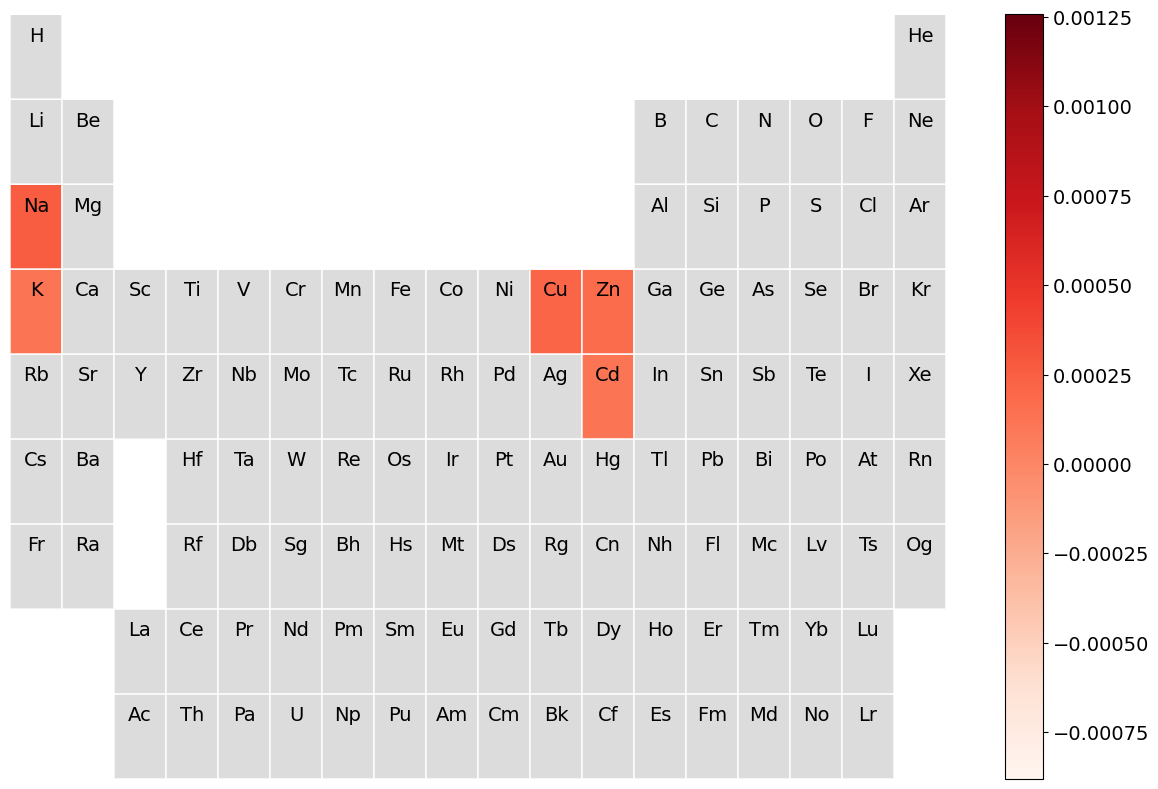

If you want to plot the results in the form of heatmap, use plot_dopants method.

The default colormap is 'YlOrRd'. Use the cmap parameter to choose a different colormap.

quaternary.plot_dopants(cmap="Reds")

Alternative metrics

The probability values for the dopants are calculated based on the algorithm presented in: Hautier, G., Fischer, C., Ehrlacher, V., Jain, A., and Ceder, G. (2011) Data Mined Ionic Substitutions for the Discovery of New Compounds. Inorganic Chemistry, 50(2), 656-663

In SMACT, we can also provide alternative ways for determining the possible dopants based on alternative probability or similarity metrics.

For example, we have a similarity metric based on distributed representations of the ions, which we call skipspecies. This metric is based on the idea that similar ions should have similar embeddings. The similarity is calculated based on the cosine similarity of the embeddings of the ions.

doper_skipspecies = Doper(("Ti4+", "O2-"), embedding="skipspecies", use_probability=False)
doper_skipspecies.get_dopants(5)
# Present results in a table
table = doper_skipspecies.to_table
lines = table.split('\n')
print('\n'.join(lines[:30]))
if len(lines) > 30:
    print(f'[... {len(lines) - 30} more lines ...]')

n-type cation substitutions
sorted
+--------+----------+--------+---------------+--------------+---------------+------------+
|   Rank | Dopant   | Host   |   Probability |   Similarity |   Selectivity |   Combined |
+========+==========+========+===============+==============+===============+============+
|      1 | Nb5+     | Ti4+   |   1.87563e-05 |     0.82676  |             1 |   0.87007  |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      2 | Ta5+     | Ti4+   |   1.69308e-05 |     0.724365 |             1 |   0.793274 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      3 | P5+      | Ti4+   |   1.49316e-05 |     0.598709 |             1 |   0.699032 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      4 | V5+      | Ti4+   |   1.47139e-05 |     0.584022 |             1 |   0.688017 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      5 | Pu7+     | Ti4+   |   1.41437e-05 |     0.544501 |             1 |   0.658375 |
+--------+----------+--------+---------------+--------------+---------------+------------+

5+
+--------+----------+--------+---------------+--------------+---------------+------------+
|   Rank | Dopant   | Host   |   Probability |   Similarity |   Selectivity |   Combined |
+========+==========+========+===============+==============+===============+============+
|      1 | Nb5+     | Ti4+   |   1.87563e-05 |     0.82676  |             1 |   0.87007  |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      2 | Ta5+     | Ti4+   |   1.69308e-05 |     0.724365 |             1 |   0.793274 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      3 | P5+      | Ti4+   |   1.49316e-05 |     0.598709 |             1 |   0.699032 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      4 | V5+      | Ti4+   |   1.47139e-05 |     0.584022 |             1 |   0.688017 |
+--------+----------+--------+---------------+--------------+---------------+------------+
|      5 | Re5+     | Ti4+   |   1.39685e-05 |     0.532039 |             1 |   0.649029 |
+--------+----------+--------+---------------+--------------+---------------+------------+
[... 172 more lines ...]
